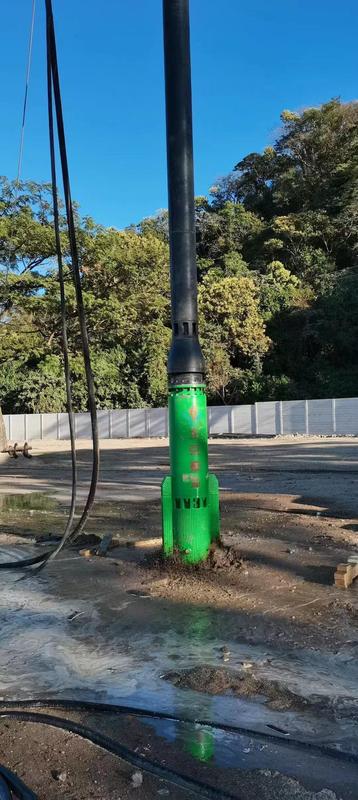

Top Feed Vibroflot with 150 Kw and 225 Kw Power Options and 1700 Kg Weight for Efficient Vibro Compaction

Brand Name:	BVEM
Model Number:	BJVH-350-150、BJVEF-450-225
MOQ:	1 set
Packaging Details:	wooden case
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO、CE

Document:

Condition::

Power::

150 Kw、225 Kw

Weight::

1700 Kg、2250 Kg

Dimension(l*w*h)::

2250*650*340 Mm、3150*750*450 Mm

Power Type::

Hydraulic、Frequency

Application::

Vibro Compaction、Vibro Replacement

Max. Speed::

2600-2900 Rpm、1450-1740 Rpm

Max. Amplitude::

11 Mm、20 Mm

Centrifugal Force::

250-350 Kn、520 Kn

Warranty::

1 Year Or 2000 Hours (whatever Occurs First)

Supply Ability:

600 sets/ years

Highlight:

150 Kw Top Feed Vibroflot

225 Kw Vibroflotation Equipment

1700 Kg Vibro Compaction Device

Product Description

Comparative Analysis of Vibroflotation Equipment Series 2

Analysis of Technical Types and Application Scenarios

1. Conventional Electric Models (BJVE-426-180, BJVE-450-260)

Technical Features:

Relatively simple structure, constant speed, and low maintenance costs. Suitable for projects requiring stable vibroflotation parameters and single operating scenarios.

Application Scenarios:

BJVE-426-180 (426mm diameter, 180kW power):
Applicable to medium-scale foundation treatment projects, meeting the dual requirements of vibroflotation compaction and vibroflotation replacement stone column/gravel piles. Double lifting can be used for compaction construction, and the spacing between piles can be considered to be 3-4m, greatly increasing work efficiency.
BJVE-450-260 (450mm diameter, 260kW power):
With its 26mm large amplitude and 440kN high centrifugal force, it is widely used in large-scale hydraulic fill sand vibroflotation compaction construction. During construction, the spacing between piles can be considered to be 4-5m, thereby reducing the number of piles and lowering construction costs.

2. Hydraulic Model (BJVH-350-150)

Technical Features:

Driven by a hydraulic system, it offers high speed (2600-2900rpm), fast vibration frequency, and quick response. However, its centrifugal force and amplitude are relatively low.

Application Scenarios:

It can quickly penetrate soil layers in complex hard geological conditions, greatly improving work efficiency. In vibroflotation replacement stone column / gravel pile construction, it produces smaller pile diameters, facilitating pile diameter control and reducing material costs.

3. Electric Variable-Frequency Model (BJVEF-450-225)

Technical Features:

Adopts variable-frequency technology with adjustable speed (1450-1740rpm), enabling flexible adjustment of vibration parameters based on the hardness of the original foundation soil. It combines high centrifugal force (520kN) and large amplitude (20mm), representing a "high-performance + high-adaptability" solution.

Application Scenarios:

Provides adjustable penetration capacity in complex geological formations and offers a large vibration influence range in vibroflotation compaction projects.
