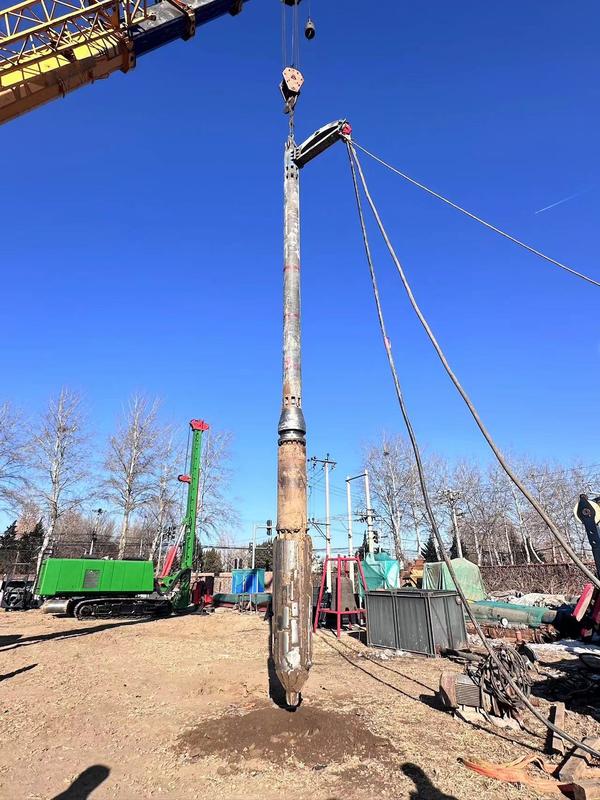

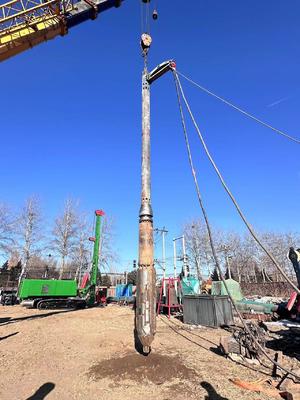

BVEM 600-2600 r/min 150kW Hydraulic Vibroflot with 29 Nm Eccentric Moment for Soil Compaction

Brand Name:	BVEM
Model Number:	BJVH-350-150
MOQ:	1 set
Price:	US $ 250000-300000
Packaging Details:	wooden case、wooden pallet
Payment Terms:	L/C、T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001:2000、ISO 9001:2008

Document:

Frequency::

43 Hz

Vibroflot Diameter::

500-800 Mm

Vibrator Power::

150kW

Outer Diameter Of Vibroflot: :

350 Mm

Eccentric Moment Of Vibroflot: :

29 Nm

Rated Speed Of Vibroflot: :

600-2600 R/min

Warranty:

1 Year Or 2000 Hours

Condition:

Supply Ability:

600 set/years

Highlight:

600-2600 r/min Hydraulic Vibroflot

150kW Power Vibroflotation Machine

29 Nm Eccentric Moment Soil Compaction Equipment

Product Description

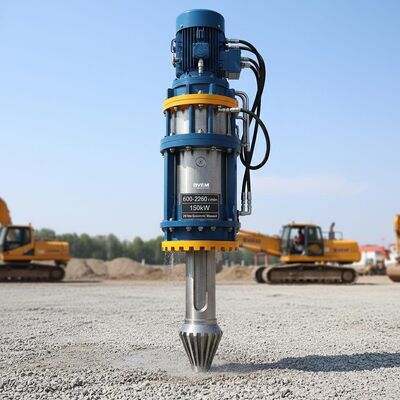

BVEM 2600 r/min Hydraulic Vibroflot Pile Driver

With over 50 years of dedication to the vibroflotation industry, BVEM specializes in research, development, and manufacturing of high-efficiency vibroflotation equipment. The BJVH-350-150 hydraulic vibroflot represents the culmination of technical expertise and innovative engineering, delivering reliable performance for demanding construction projects.

Working Principle

This hydraulic vibroflot efficiently converts hydraulic energy into mechanical rotational motion through a hydraulic motor, driving eccentric blocks to generate powerful horizontal excitation force. Key advantages include large output torque, wide speed regulation range, and stepless speed control capability, providing both operational efficiency and stable power for vibroflotation construction.

Key Features

600-3000 rpm stepless speed regulation for flexible adaptation to different construction rhythms and soil conditions
Wide range of applicable soil types with strong excitation force and optimized structural design for enhanced penetration capability
Continuous output of high excitation force and power ensures stable construction process and improved pile forming efficiency
No water-cooled motor required, enabling dry method environmental protection construction and green engineering compliance
High adaptability for mounting on various equipment including special pump stations, rotary drilling rigs, excavators, and pile frames

Technical Parameters

Parameter	Value
Eccentric Moment	29 Nm
Rated Speed	600-2600 r/min
Rated Power	150 kW
Amplitude	±4.6 mm
Hydraulic Flow Rate	208 lpm
Maximum Working Pressure	350 bar
Maximum Excitation Force	214 kN
Weight	935 kg
Outer Diameter	350 mm
Outer Diameter with Water Channel	568 mm
Pile Forming Diameter	600-800 mm

Applications

CE ISO 9001

Manufactured in China

BVEM offers comprehensive vibroflot solutions including electric and hydraulic models, orifice filling and bottom discharge variants, and equipment adaptable to diverse construction scenarios.

Foundation Construction: Compacts soil and improves relative density for stable building and infrastructure foundations
Road and Highway Projects: Enhances soil strength and reduces settling to increase lifespan and durability of transportation infrastructure
Retaining Wall Installation: Improves soil stability and prevents erosion in retaining wall construction projects

The BVEM Hydraulic Vibroflot provides contractors, engineers, and construction professionals with a reliable soil improvement solution that streamlines projects and delivers exceptional results.
