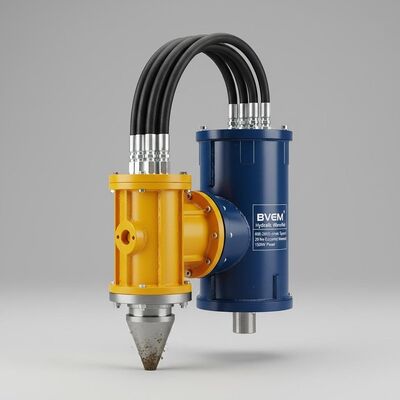

BVEM Hydraulic Vibroflot with 600-2600 r/min Speed, 29 Nm Eccentric Moment, and 150kW Power for High-Performance Soil Compaction

Brand Name:	BVEM
Model Number:	BJVH-350-150
MOQ:	1 set
Price:	US $ 250000-300000
Packaging Details:	wooden case、wooden pallet
Payment Terms:	L/C、T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001:2000、ISO 9001:2008

Document:

Frequency::

43 Hz

Vibroflot Diameter::

600-800 Mm

Vibrator Power::

150kW

Outer Diameter Of Vibroflot: :

350 Mm

Eccentric Moment Of Vibroflot: :

29 Nm

Rated Speed Of Vibroflot: :

600-2600 R/min

Warranty:

1 Year Or 2000 Hours

Condition:

Supply Ability:

600 set/years

Highlight:

600-2600 r/min Hydraulic Vibroflot

29 Nm Eccentric Moment Vibroflotation Machine

150kW Power Soil Compaction Equipment

Product Description

BVEM Hydraulic Vibroflot: Your Key to Successful and High-Performance Vibroflotation Projects

With over 50 years of dedication to the vibroflotation industry, BVEM has focused on the R&D and investment in vibroflotation products. We are committed to creating high-efficiency, stable, and high-quality equipment as our core goal, providing solid and reliable guarantees for customers' vibroflotation projects. The BJVH-350-150 hydraulic vibroflot under our brand is a concentrated embodiment of our technical accumulation and innovative strength.

Working Principle

This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate a strong horizontal excitation force. It offers significant core advantages: large output torque, wide speed regulation range, and the ability to achieve stepless speed regulation. The system easily copes with large impact loads, providing both work efficiency and stable power support for vibroflotation construction.

Key Features

600-3000rpm stepless speed regulation for flexible matching of different construction rhythms and stratum requirements, with precise control over operation intensity

Wide range of applicable strata with strong excitation force and optimized structural design for enhanced penetration capability in both soft soil foundations and gravel-containing strata

Continuous output of large excitation force and high power ensures stable and continuous construction process, effectively improving pile forming efficiency and project quality

No water-cooled motor required, eliminating traditional construction dependence on water sources and enabling environmentally friendly dry method vibroflotation construction

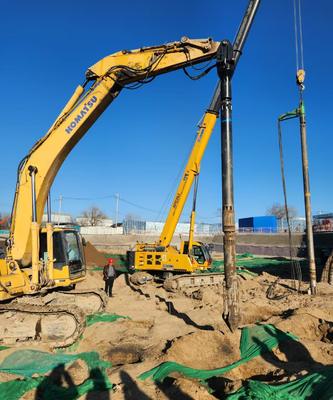

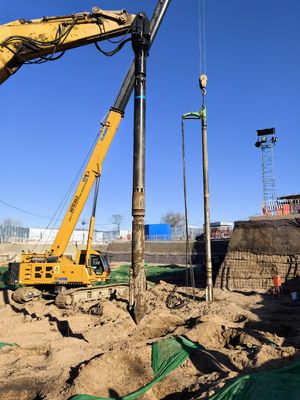

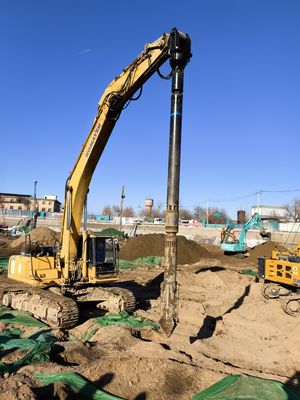

High adaptability for flexible mounting on various construction equipment including special pump stations, rotary drilling rigs, excavators, and pile frames

Technical Parameters

Parameter	Value
Eccentric Moment	29 Nm
Rated Speed	600-2600 r/min
Rated Power	105 kW
Amplitude	±4.6 mm
Hydraulic Flow Rate	208 lpm
Maximum Working Pressure	350 bar
Maximum Excitation Force	214 kN
Weight	935 kg
Outer Diameter	350 mm
Outer Diameter with Water Channel	568 mm
Pile Forming Diameter	600-800 mm

Applications

Manufactured in CHINA with CE and ISO 9001 certifications ensuring top-notch quality and performance.

BVEM has always been oriented to the diversified needs of customers, and is deeply engaged in the diversified R&D and innovation of vibroflot equipment: from electric vibroflots to hydraulic vibroflots, we have realized the iterative upgrading of driving methods; from orifice filling vibroflots to bottom discharge vibroflots, we have accurately adapted to the core needs of different construction technologies; we have also broken through the limitations of equipment mounting scenarios, covering all kinds of construction scenarios.

Foundation Construction: The BVEM Hydraulic Vibroflot is ideal for compacting soil and improving its relative density, ensuring stable foundations for buildings and infrastructure.

Road and Highway Projects: Use this vibroflotation machine to enhance soil strength and reduce settling, increasing the lifespan and durability of roads and highways.

Retaining Wall Installation: Improve soil stability and prevent erosion by utilizing the BVEM Hydraulic Vibroflot in retaining wall construction.

Whether you are a contractor, engineer, or construction professional, the BVEM Hydraulic Vibroflot offers a reliable solution for soil improvement tasks. Trust in its quality, performance, and advanced functionality to streamline your projects and achieve excellent results.
