| Brand Name: | BVEM |
| Model Number: | BJZC-BFS-400-180 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | 40 GP container |
| Payment Terms: | L/C, T/T |

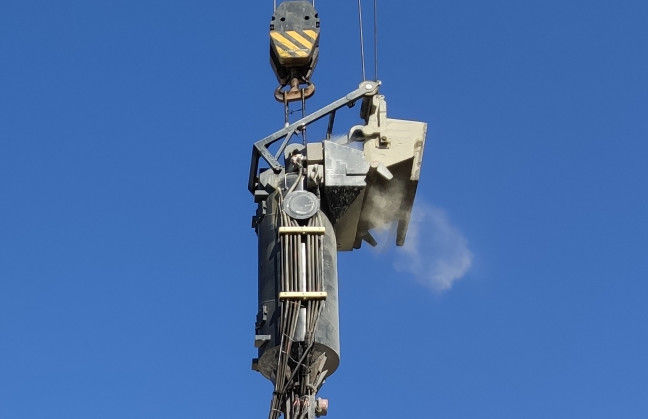

BVEM Construction Equipments of Bottom Feed Vibroflot Wet and Dry Method application
| The Bottom Feed Electrical Vibroflot Spec. | |
| Rotation speed(rpm) | 1200-1800 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Hopper volume(m³) | 1.2 |
| Pipe diameter(mm) | DN250 |
| Control type | Inverter Control |
Vibroflotation Applicable Scope by Soil Classification
1. Vibro-compaction can be proposed but big rocks may be sufferred
2. Non-filling Vibro-compaction can be applicated
3. Both non-filling Vibro-compaction and filling Vibro-compaction are the possible applicable solution
4. Vibro-replacement (Stone column) can be applicated
What is Bottom Feed Vibroflotation
A special vibroflotation method which can realize the filling material direct reaching at the real-time borehole bottom position of pile making through the feeding pipe attached to the vibroflotation equipment, and carries out the stone column or sand pile making.
Working Principle of Vibro-BF
|
