Security Static Load Tester For Stone Column Gravel Pile Composite Foundation

Model Number:	YL-PLT1s
MOQ:	1
Price:	Negotiable
Packaging Details:	wooden case

Detail Information

Product Description

Detail Information

Place of Origin:

China

Supply Ability:

600 sets per year

Highlight:

security static load tester

stone column static load tester

Product Description

Static Load tester for stone column gravel pile composite foundation load testing device

Model	YL-PLT1s
Main control unit	Lowpowerembeddedindustrialcomputer
Display screen	1024×768
Storage	8G
Power supply	Device(AC220V;DC12.6V),Oil pump (AC380/220V available)
Measuremen tand control method	Wired/Wireless
Wireless measurement and control distance	>300m
Video surveillance	Independent HD camera
Working temperature	-30-55
Weight	1.6kg
Dimension	375mm×300mm×90mm

Pile load test equipment

Integrate the complete set of system equipment required for pile load test to help customers complete one-stop procurement, includes:

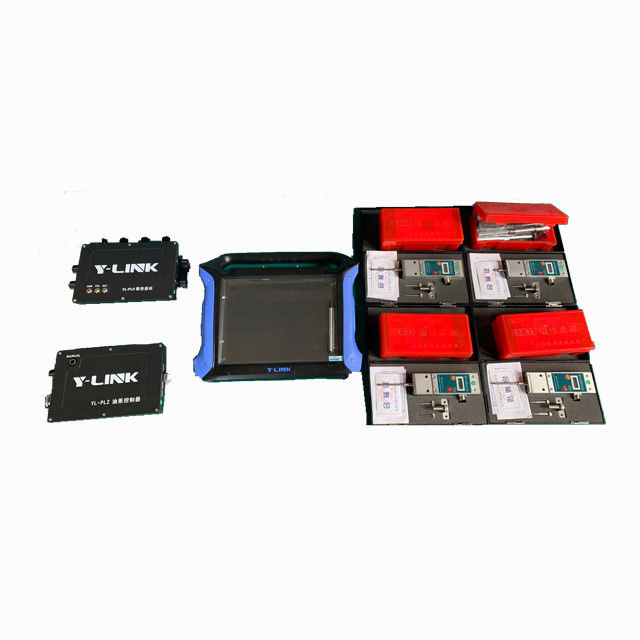

1. Load tester

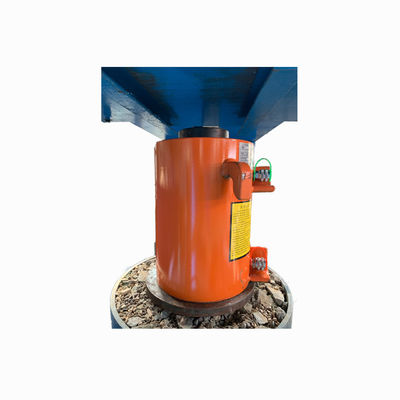

2. Hydraulic jack

3. Hydraulic pipe

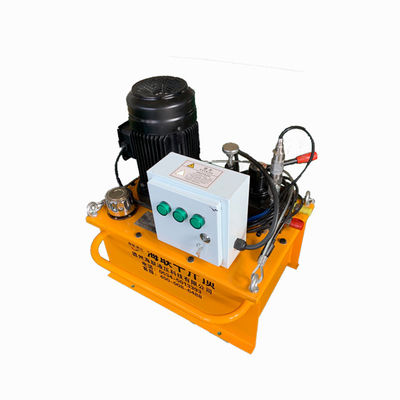

4. Hydraulic power station

5. Displacement senor

Characteristic

1. high-performance testing device for the field of pile static load testing in various engineering industries

It provides high test accuracy, high security, stable performance, friendly interface and convenient operation.

Test data graphs and waveforms are convenient and clear for browsing with curve reversal and translation supported.

Provides various printing formats such as graphs, schedules, summary tables, and custom report formats.

Support single pile vertical compression load test, single pile vertical pull load test, single pile horizontal cyclic load test, anchor pull testing, composite foundation load test, deep (shallow) flat plate load test, In-situ load test, rock foundation load test, self-balance test, etc

Product Purposes
◆ Pressure resistance, pull resistance, horizontal and self-balanced static load test of single pile
◆ Static load test of shallow (deep) layer plate and rock foundation
◆ Static load test of treated foundation and composite foundation
◆ Pull - out test of rock bolt
◆ Floor and bridge load test
