Efficient 180kW Vibroflotation Compaction Machine Bottom Feed Vibro Float

Brand Name:	BVEM
Model Number:	BJZC-BFS-400-180
MOQ:	1
Price:	Negotiable
Packaging Details:	40 OQ container
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Bottom Feed Vibro Float

Max Rotation Speed:

1800 Rpm

Vibration Power:

200-300 KN

Hopper Volume:

1.2 M³

Pressure:

6 Bar

Name:

Bottom Feed Vibroflot

Supply Ability:

300 sets per year

Highlight:

vibro replacement machine

vibroflotation compaction machine

Product Description

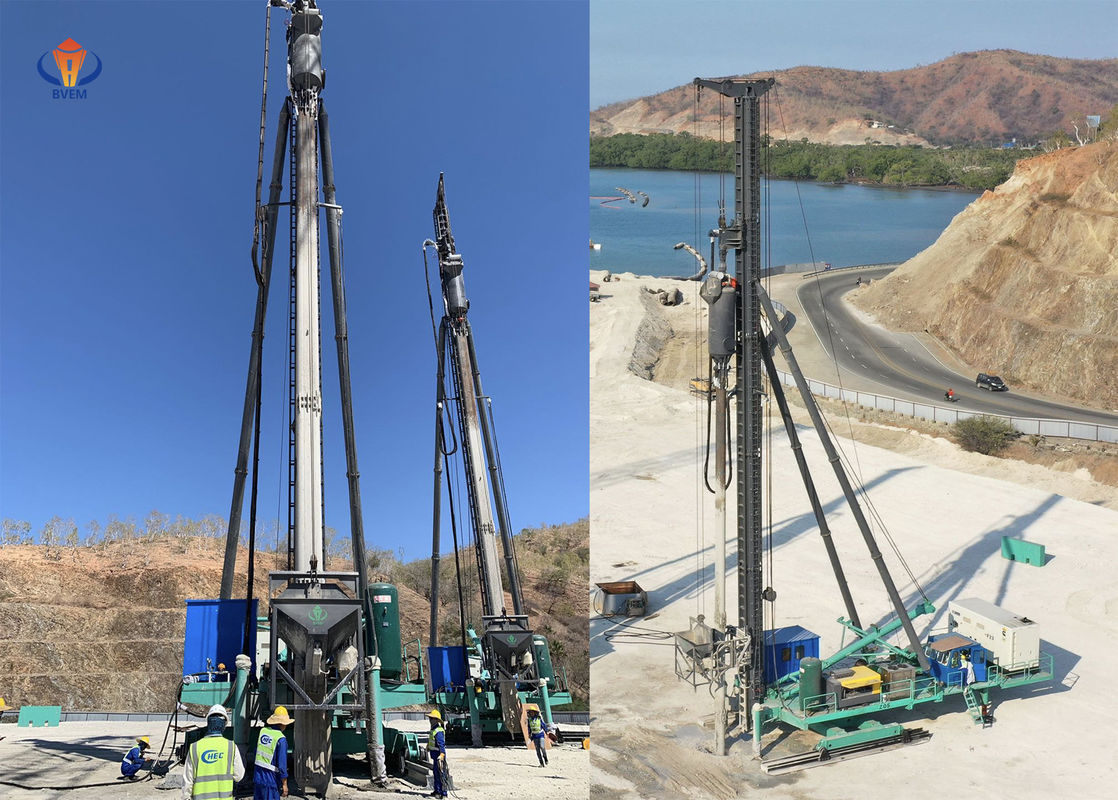

Efficient 180kW bottom feed vibro float with pile frame

Vibroflot profile

As a pile driving machine, vibroflot is a typical equipment with big population, high efficiency and better economy.
The working principle of the vibrator is that the special motor mobilizes the eccentric block within the vibrating body through coupling, generating centrifugal force, and causing horizontal vibration of the whole vibrator. The vibrator can be applied in the construction of packing vibro pile and compaction vibro pile. It is applicable for the consolidation of foundations such as gravelly soil, sandy soil, silt soil, cohesive soil, artificial soil and collapsible soil etc., as well as increasing density and resisting liquefaction of various types of liquefiable soil. After vibration shock process, the stratum can stand a certain degree of dynamic load, and can improve bearing capacity of foundation soil, relative density and liquefaction resistance capacity.

Profile of Bottom Feed Vibroflotation:

Bottom feed method vbroflotation construction need a special vibroflot equipment with bottom feed system to realize. This professional equipment are commonly composed of :

1. Electrical or hydraulic vibroflot system ( vibroflot, damper, extension tube and electrical cabinet )

2. Feeding system ( feeding tube , damper )

3. Stock bin system ( double bin or single bin )

4. Material supply system ( lifting hopper )

5. Controlling system ( Valve controlling , air pressure controlling, material level controlling )

Due to the diversity of engineering condition, bottom feed vibroflot need to be customized for production.
