| Brand Name: | BVEM |
| Model Number: | BJZC-BFS-400-180 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

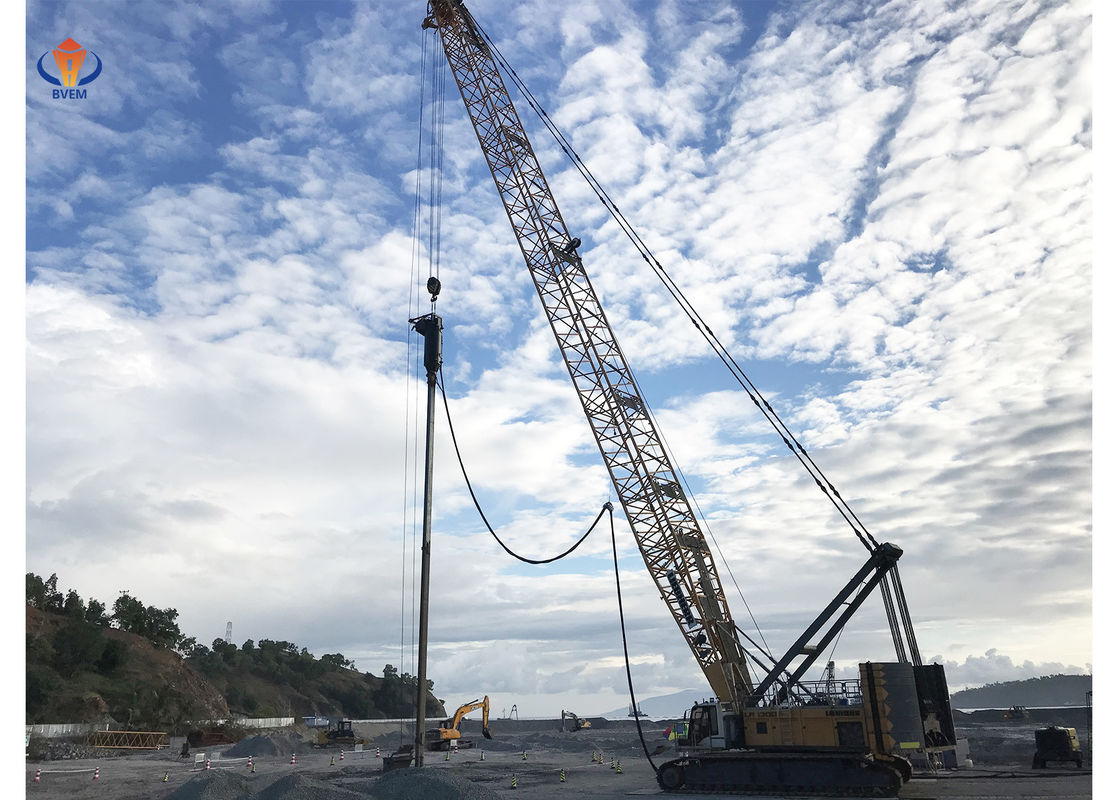

Bottom feed vibroflot used for Silt clay improvement application by vibro replacement method 180KW
| The Bottom Feed Electrical Vibroflot Spec. | |
| Type | BJZC-BFS-400-180 |
| Power(kW) | 180 |
| Voltage(V) | 380 |
| Frequency(Hz) | 50 |
| Rotation speed(rpm) | 1200-1800 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Vibration force(kN) | 200-300 |
| Hopper volume(m³) | 1.2 |
| Pipe diameter(mm) | DN250 |
| Control type | Inverter Control |
Vibroflot profile
As a pile driving machine, vibroflot is a typical equipment with big population, high efficiency and better economy.
The working principle of the vibrator is that the special motor mobilizes the eccentric block within the vibrating body through coupling, generating centrifugal force, and causing horizontal vibration of the whole vibrator. The vibrator can be applied in the construction of packing vibro pile and compaction vibro pile. It is applicable for the consolidation of foundations such as gravelly soil, sandy soil, silt soil, cohesive soil, artificial soil and collapsible soil etc., as well as increasing density and resisting liquefaction of various types of liquefiable soil. After vibration shock process, the stratum can stand a certain degree of dynamic load, and can improve bearing capacity of foundation soil, relative density and liquefaction resistance capacity.
Profile of Bottom Feed Vibroflotation:
As a extension of vibroflotation technique, bottom feed method created a larger range of vibroflotation application. In terms of its feature, vibroflotation can be conducted to treat the foundation in those projects even under following situation:
1. Silty or silty clay soil with undrained shearing strength less than 20Kpa
2, Underwater of offshore stone column construction
3. Projects under the strict controlling of pile diameter
4. Place where the water resource are used in limitation
5. Place where the waste water are strictly prohibit to discharge
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
|
|
