| Brand Name: | BVEM |
| Model Number: | BJZC-BFS-400-180 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

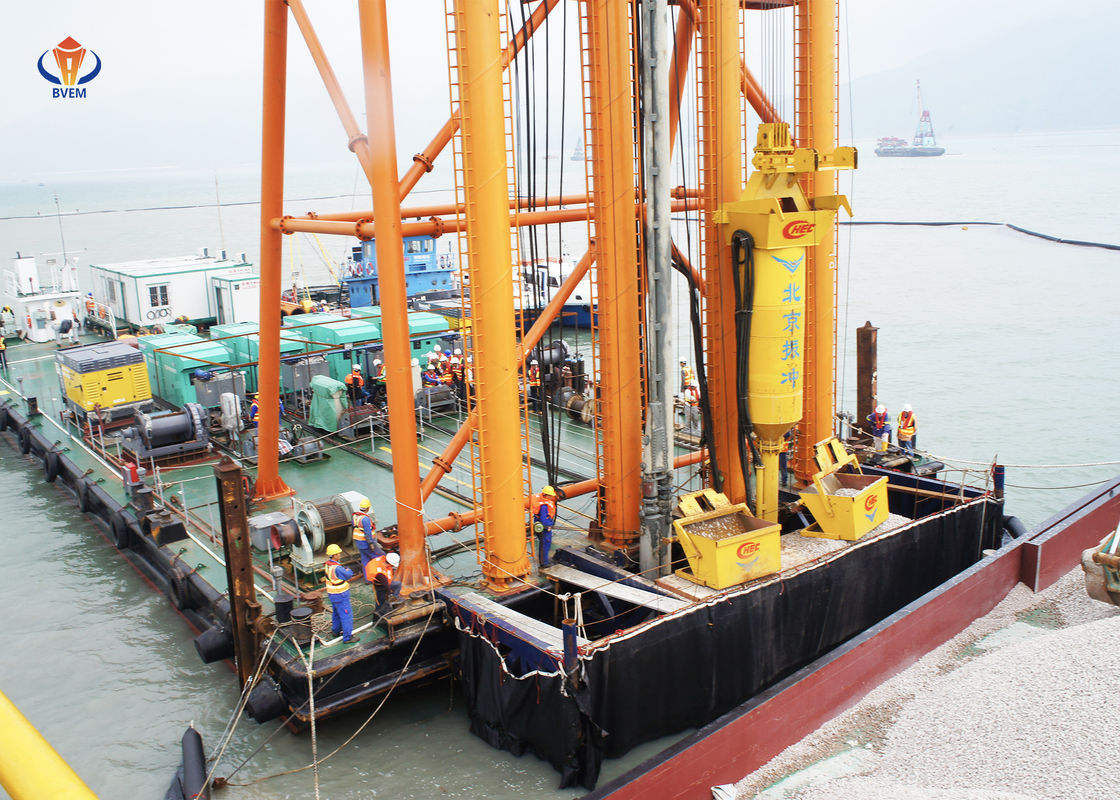

Bottom feed vibroflot equipment with powerful motor BJZC-V400-180 used for stone column construction
| The Bottom Feed Electrical Vibroflot Spec. | |
| Type | BJZC-BFS-400-180 |
| Power(kW) | 180 |
| Voltage(V) | 380 |
| Frequency(Hz) | 50 |
| Rotation speed(rpm) | 1200-1800 |
| Working pile diameter (mm) | 900-1200 |
| System pressure(bar) | 6 |
| Vibration force(kN) | 200-300 |
| Hopper volume(m³) | 1.2 |
| Pipe diameter(mm) | DN250 |
| Control type | Inverter Control |
Profile of Bottom Feed Vibroflotation:
As a extension of vibroflotation technique, bottom feed method created a larger range of vibroflotation application. In terms of its feature, vibroflotation can be conducted to treat the foundation in those projects even under following situation:
1. Silty or silty clay soil with undrained shearing strength less than 20Kpa
2. Underwater or offshore stone column construction
3. Projects under the strict controlling of pile diameter
4. Place where the water resource are used in limitation
5. Place where the waste water are strictly prohibit to discharge
Due to the diversity of engineering condition, bottom feed vibroflot need to be customized for production.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
As an professional company in vibroflotation industry, our company can provide users with full process services during the stages of pre-sales and after-sales as well, including vibroflotation design, construction scheme formulation, vibroflot and relevant equipment selection advice, installation and commissioning of the vibroflot, as well as the construction guidance and maintenance training.
|
|
