| Brand Name: | BVEM |
| Model Number: | BJV75E-377 |
| MOQ: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden case、wooden pallet |
| Payment Terms: | L/C、T/T |

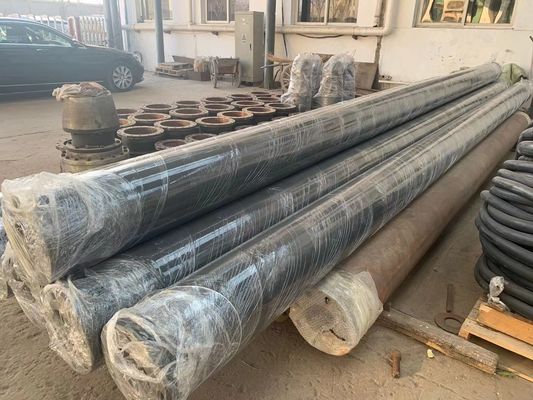

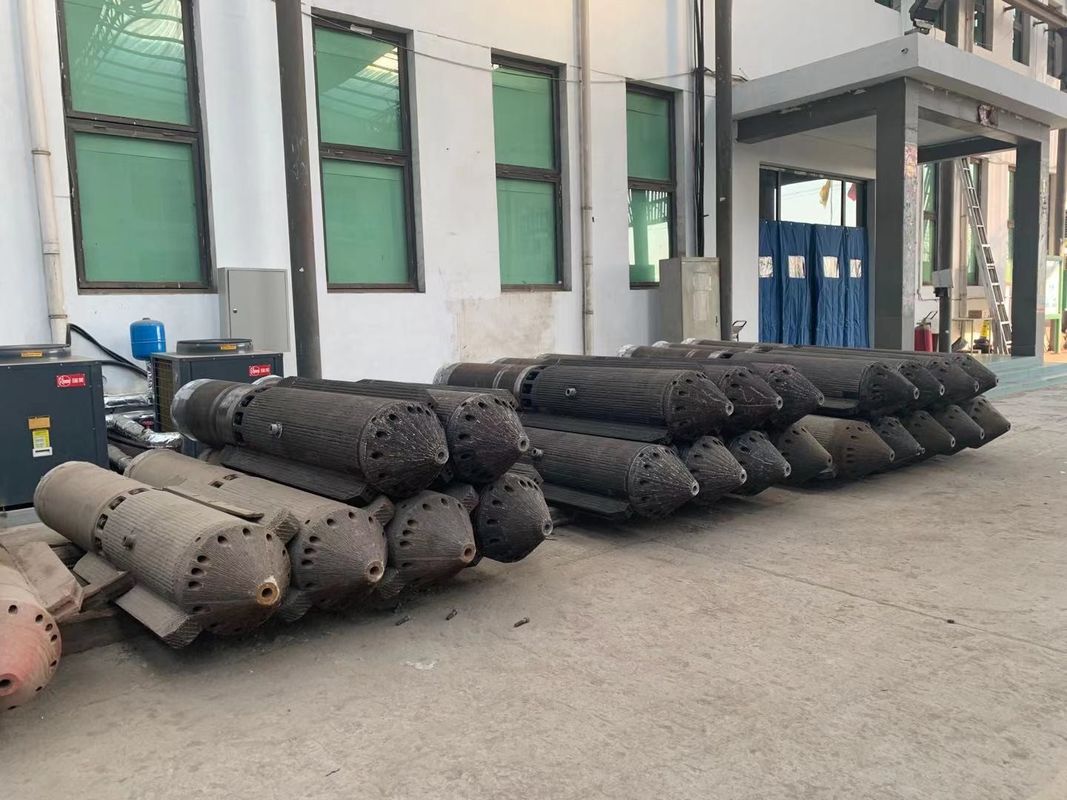

75kw top feed vibrofloation device used for vibro sand compaction project
| 75kW Vibroflot Spec. | |
| Type | BJV75E-377 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 17.5 |
| Centrifugal force/kN | 188 |
| Weight /kg | 1828 |
| Diameter/mm | 377 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (700-1200) |
The working principle of vibroflot
The working principle of the vibrator is that the special motor mobilizes the eccentric block within the vibrating body through coupling, generating centrifugal force, and causing horizontal vibration of the whole vibrator. The vibrator can be applied in the construction of packing vibro pile and compaction vibro pile. It is applicable for the consolidation of foundations such as gravelly soil, sandy soil, silt soil, cohesive soil, artificial soil and collapsible soil etc., as well as increasing density and resisting liquefaction of various types of liquefiable soil. After vibration shock process, the stratum can stand a certain degree of dynamic load, and can improve bearing capacity of foundation soil, relative density and liquefaction resistance capacity.
|
