| Brand Name: | BVEM |
| Model Number: | ZJ-C104-I-B |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Payment Terms: | L/C, T/T |

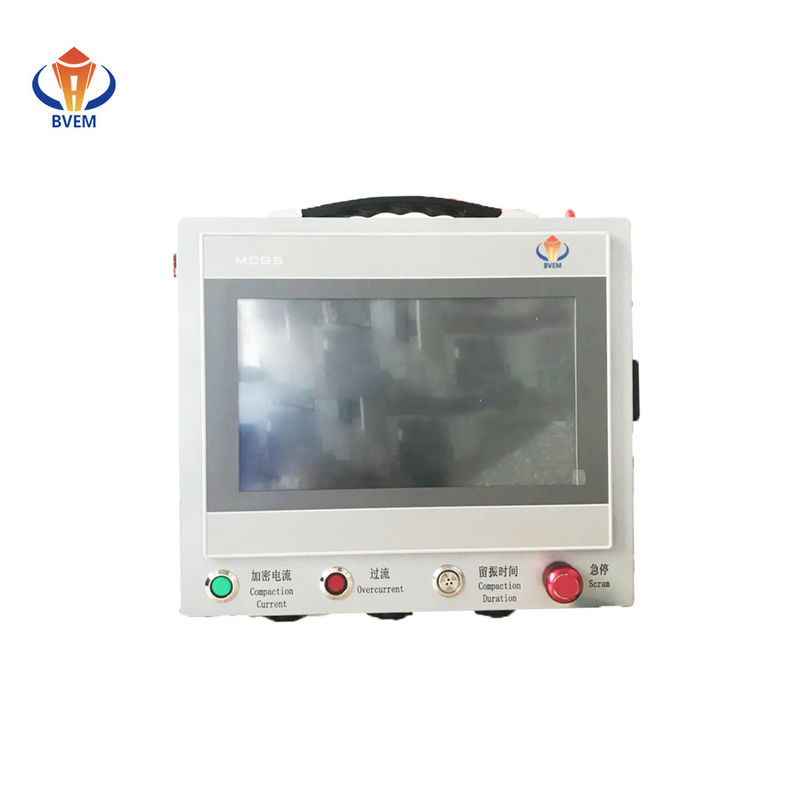

Vibroflotation data logger remote recording the construction information of vibro replacement
| Remote Control Monitor Spec. | |
| Type | ZJ-C104-I-B |
| L/W/H(mm) | 305×280×100 |
| Weight/ (kg) | 3 |
| Screen size (inches) | 10 |
| Connect method | Wireless |
Whole Process Quality Control Monitor
Remote control of switching on/off of vibroflot system and record the working current, depth of vibroflot, filling quantity and construction time in real time to realize the whole process monitoring of construction proceeding.
Remote control and monitoring
Wireless remote connection mode, with 100 meters effective operation distance
Touch screen function
Bilingual interface between Chinese and English
Adopt color touch screen, and the operation is intuitive and convenient
Visual data processing
The image can be processed by a powerful data processing software, and both of the actual and average pile graph can be formed. All data can be freely exported and printed.
BVEM profile (Beijing vibroflotation engineer machinery co.,ltd)
BVEM· A pioneer to optimize construction of vibroflotation method
1.In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting
2.For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method
3.In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa
4.In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China
5.In 2014, the first YZ125KW hydraulic vibroflot was developed.
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
|
|
