| Brand Name: | BVEM |
| Model Number: | BJV180E-426 |
| MOQ: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

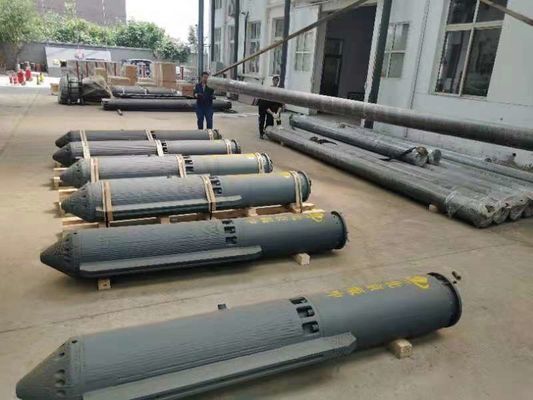

Vibro Pile Foundation Vibro Float Device 426 mm 180 kW for foundation treatment
| The Top Feed Electric Vibroflotation Equipment Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV75E-426 | 75 | 148 | 1450 | 16 | 180 | 2018 | 426 | 2783 |
| BJV180E-426 | 180 | 350 | 1450 | 18.9 | 276 | 2586 | 426 | 3100 |

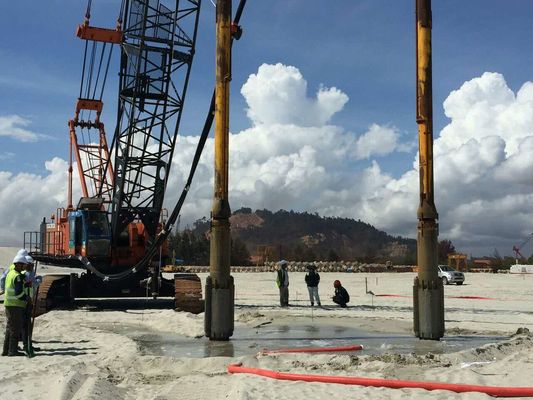

BVEM 75kW vibroflot is applied to Guantan Port, Malaysia, artificial Reclamation Vibro Compaction Project

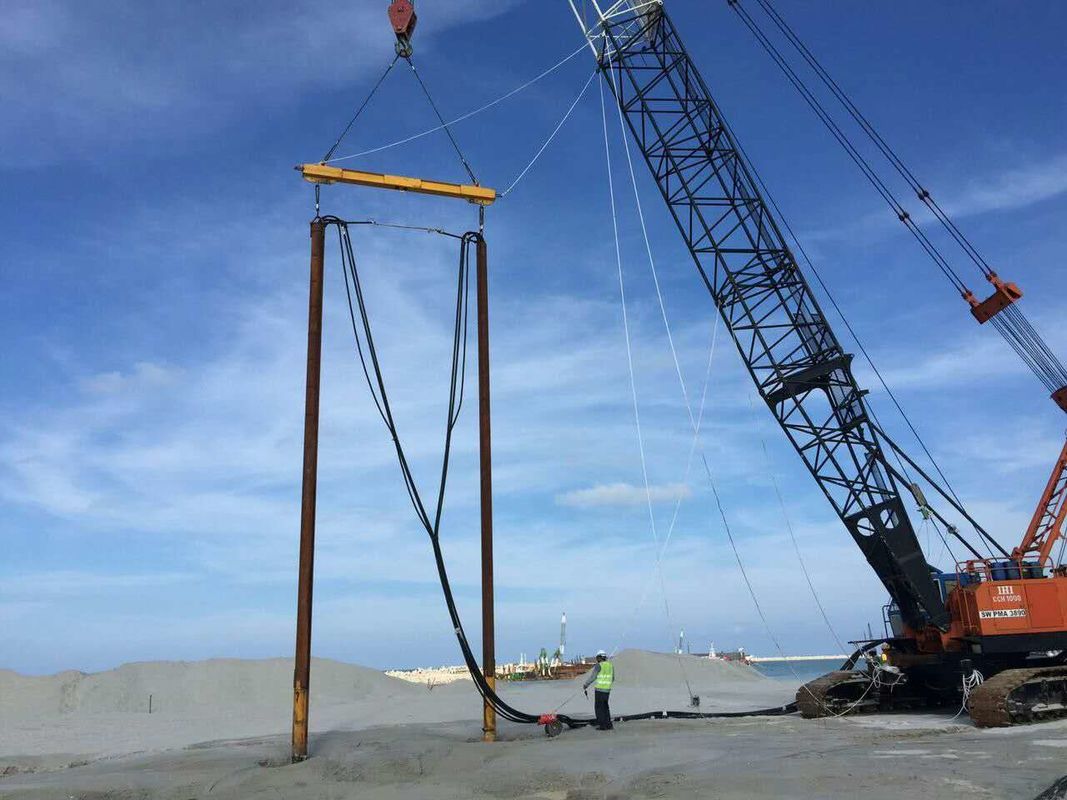

The type of BJV180E-426 vibroflot produced by our company successfully completed the vibro-compaction foundation treatment project of 600,000 square meters of offshore blown sand, with an average treatment depth of 15 meters.
BVEM |China vibroflot equipment manufacturer
BVEM· A pioneer to optimize construction of vibroflotation method
1.In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting
2.For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method
3.In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa
4.In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China
5.In 2014, the first YZ125KW hydraulic vibroflot was developed.
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
|
|
