| Brand Name: | BVEM |
| Model Number: | BJV75E-426 |
| MOQ: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |
The best reputation of vibroflot with high quality in vibro pile foundation engineering BJV75E-426
| Vibroflot Spec. | ||||
| Type | BJV75E-426 | BJV130E-426 | BJV180E-426 | BJV260E-450 |
| Power/kW | 75 | 130 | 180 | 260 |
| Rotation speed/rpm | 1450 | 1450 | 1450 | 1450 |
| Amplitude (at Tip)/mm | 16 | 17.2 | 18.9 | 32 |
| Centrifugal force/kN | 180 | 208 | 276 | 520 |
| Weight /kg | 2018 | 2320 | 2586 | 3280 |
| Diameter/mm | 426 | 426 | 426 | 450 |
| Length/mm | 2783 | 2963 | 3100 | 3400 |
| Diameter of the work pile/mm | (800-1200) | (800-1200) | (1000-1500) | (1500-2000) |

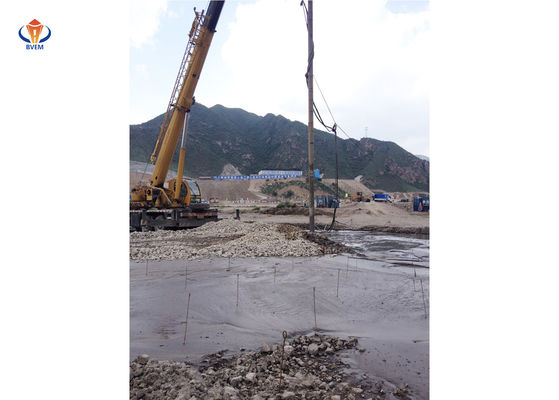

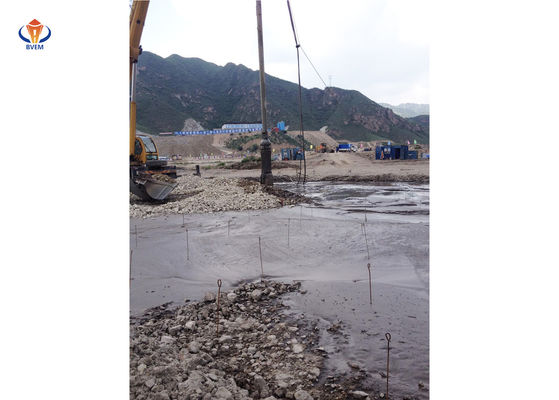

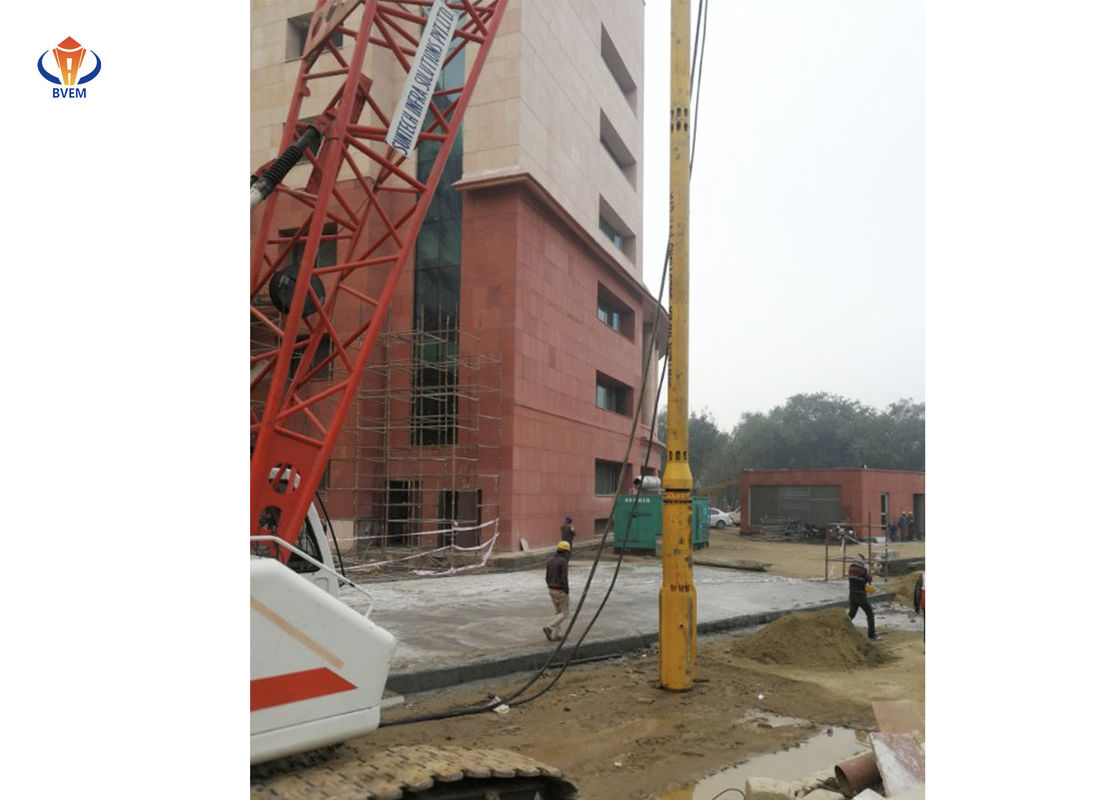

Vibroflotation
vibroflotation is one of a typical technique which is a widely used application for foundation soil improvement. In vibroflotation construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water or air shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity. Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.
Vibroflotation benefits
The deep vibro techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions and foundation requirements. Its execution is comparatively fast even if large volumnes of soil are to be improved and subsequent structural works can follow very quickly.The soil improvement enables the contractor to utilise standard shallow footings which,in turn,leads to additional savings.
Another advantage is the environmental friendliness of vibro techniques,as natural and in situ materials are used. In addition, only a comparatively small quantity of soil is removed during the process.
Beijing vibroflotation engineer machinery co.,ltd
BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
|
|
