| Brand Name: | BVEM |
| Model Number: | BJV180E-377 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T, MoneyGram |
vibroflot equipment pile driver compaction pile vibroflotation 377mm 180kW for soft soil ground
| 75- 180 kW Vibro float Spec. | |||
| Type | BJV180E-377 | BJV75E-377 | BJV130E-377 |
| Power/kW | 180 | 75 | 130 |
| Rotation speed/rpm | 1450 | 1450 | 1450 |
| Amplitude (at Tip)/mm | 16 | 17 | 16 |
| Centrifugal force/kN | 195 | 175 | 195 |
| Weight /kg | 2150 | 2050 | 1920 |
| Diameter/mm | 377 | 377 | 377 |
| Length/mm | 3335 | 3245 | 3000 |

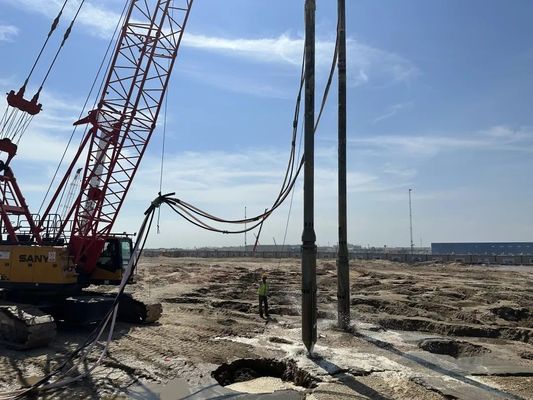

BVEM multiple vibroflotation equipment applied in the construction of Xiamen Xiang'an Airport Project in Fujian Province,China
Since June 2023, 12 sets of BVEM top feed vibroflotation equipment have been used in the construction of Xiamen Xiang'an International Airport.
The project mainly adopts the vibro compaction construction method to improve the bearing capacity of the foundation, prevent uneven settlement of the foundation, and eliminate liquefaction of the foundation. Our equipment maintains strong applicability and excellent performance under harsh conditions such as high temperatures of 40 degrees Celsius and complex geological formations, effectively ensuring project progress.
Vibroflotation method
As a pile driving machine, vibroflot is a typical equipment with big population, high efficiency and better economy.
VIBROFLOTATION is one of a typical technique which is a widely used application for foundation soil improvement. In VIBROFLOTATION construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water or air shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity. Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.
China professional vibroflotation manufacturer- Beijing Vibroflotation (BVEM)
Profession
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
Scale
BVEM has a total 23000 square meters of coverage area, including NC machining workshop, electrical assembly workshop, storage warehouse, testing site, and full functional departments is composed of production, R&D, marketing , after-sales service and construction.
|
|
