| Brand Name: | BVEM |
| Model Number: | BJV75E-377 |
| MOQ: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

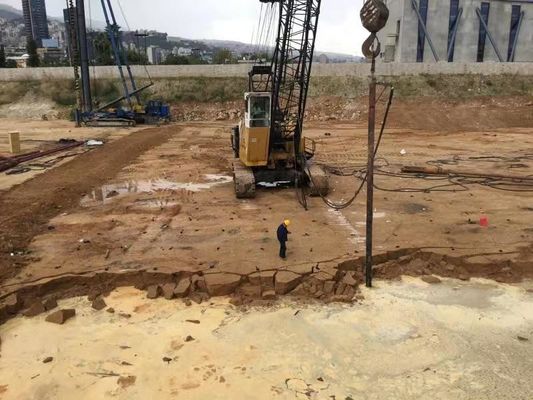

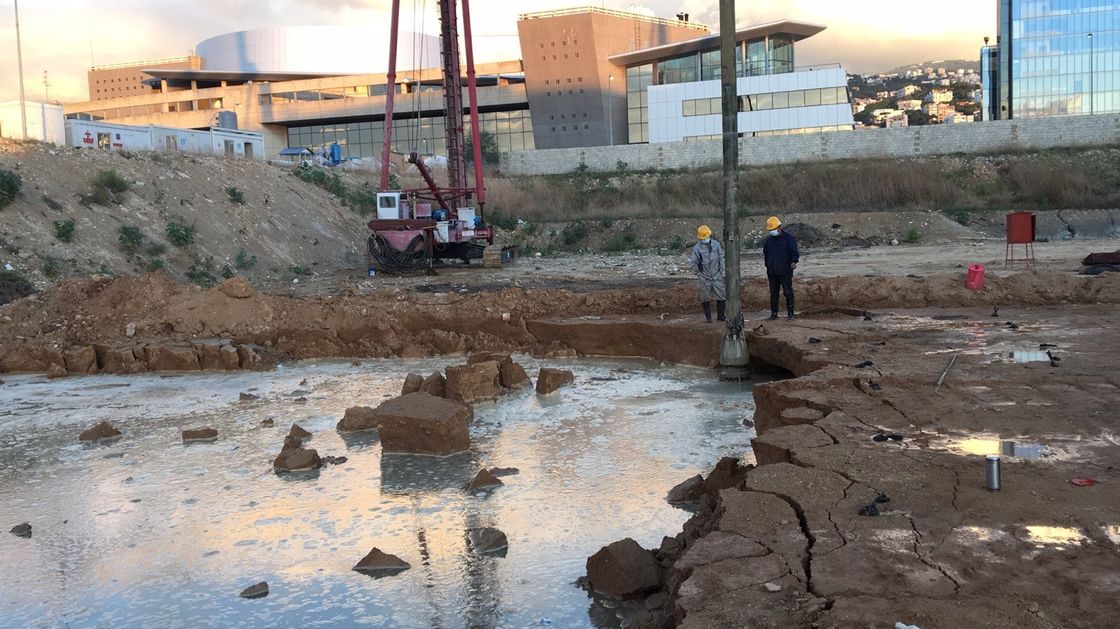

Vibro Piling Contractors assistance to the vibration compaction foundation treatment project in Lebanese
| 75kW Vibroflot Spec. | |
| Type | BJV75E-377 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 17.5 |
| Centrifugal force/kN | 188 |
| Weight /kg | 1828 |
| Diameter/mm | 377 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (700-1200) |
The project adopts CFG and vibroflotation compaction composite pile construction (CFG 66500m, vibroflotation compaction 31000m). The foundation liquefaction layer shall be treated by vibroflotation compaction first, and then CFG treatment shall be adopted to further improve the foundation bearing capacity.
Vibroflotataion Techniques
Vibroflotation can be obtained by using three different techniques:
Vibro Compaction method- This method allows granular soils to be compacted. This method is only used to compact sandy soils.
Vibro Replacement method- The technique is used to replace poor or inadequate soil material by flushing out the soil with air or water and replacing it with granular soil. This can be used in various soil types such as clay and sandy soils.
Vibro Displacement method- This procedure is used with no or small amounts of water used during the technique. The probe is inserted into the soil and it will displace it laterally as the new soil column is being formed and compacted.
BVEM/ Vibroflotation equipment manufacturer in China
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
Whole process service
Geological analysis
BVEM’s geological experts support clients on the professional analysis of soil situation and give the suggestion of feasible solution.
Vibroflotation design
By analysis and calculation result, help clients formulate vibroflotation design scheme, including the pile layout, depth of pile, diameter of pile and volume of feeding stone etc., and quality control method as well as testing method.
Equipment selection
In terms of situation of engineering, with consideration of technology, cost and construction period requirement, recommend the vibroflots model with suitable capacity and high cost performance.
Construction Scheme
According to the situation of engineering, formulate the feasible construction organization scheme, including the number of construction unit, stages and sequence of construction.
Installation&Commissioning
Service engineer reach job-site to guide the installation and commissioning of equipment, make sure equipment normal operation.
Construction Guiding
Engineers with full of construction experience demonstrate the operation of vibroflotation and train the operators of clients, help clients understand construction process and the quality control method.
|
|
