| Brand Name: | BVEM |
| Model Number: | BJV260E-450 |
| MOQ: | 1 |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

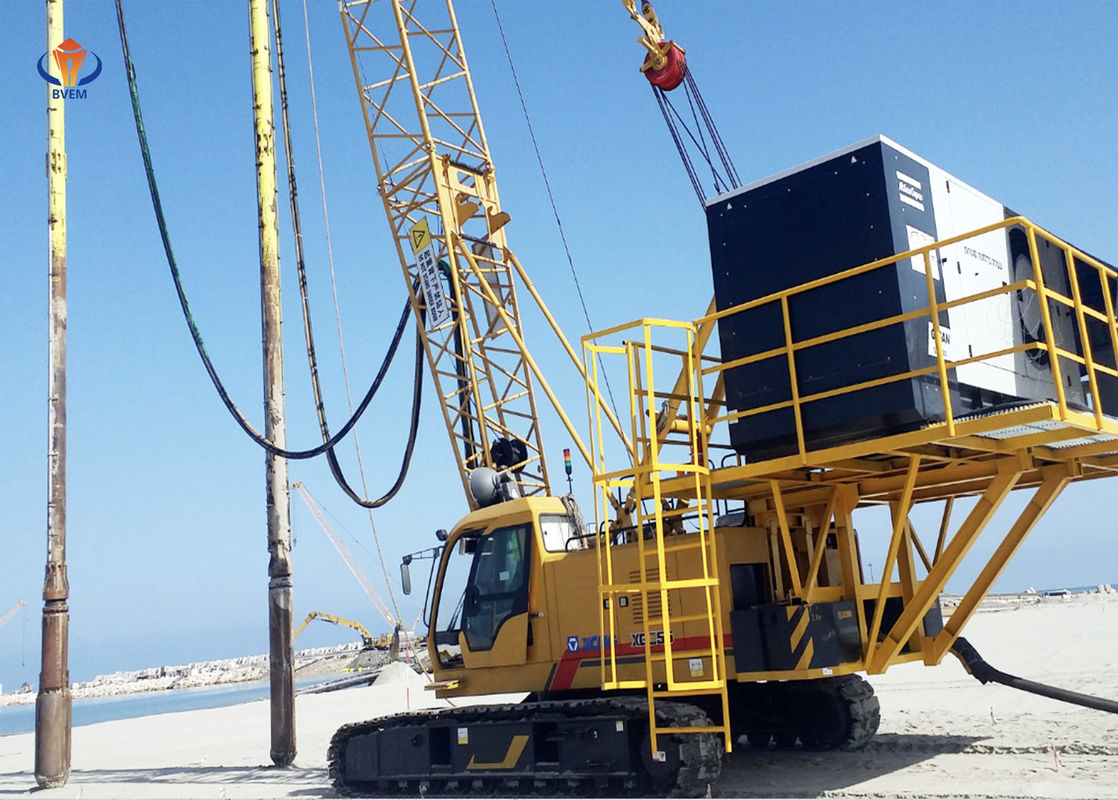

Powerful vibroflotation compaction machine used for ground improvement BJV260E-450
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV260E-450 | 260 | 500 | 1450 | 25 | 520 | 3280 | 450 | 3400 |
Vibro compaction
Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.
Vibro replacement
Jet water and vibrate by vibroflot to form holes. Fill in pile holes by section with solid filling materials such as gravel (cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up to the ground according to the requirements of compaction current and the sectional compaction length.
China vibroflot supplier (BVEM)
1.The first one who introduced and studied vibro compact method in China
2.The first one who developed application in Chinese projects
3.Has the top experts of vibroflotation tech. and experienced construction management team
4.China first one who reserched and produced vibrators
5.China first and only one who produced the Bottom Feed Vibroflot
6.The first one who produced domestic hydraulic-driven vibrator
7.All types&models coverage:30kw-260kw
8.Editor-in-cheif of industry standards <Technical Specification of Vibroflotation Method in Hydrauelectric and Water Resources Projects>(DL/T5214-2005)
9.Editor-in chelf of industry standrds <Electrical Deep Vibrator>(DL/T 1557-2016)
10.China first one who developed vibroflotation application in variety of industry(thermal power,hydraulic power, petrochemical, highway,rail, port etc.)
11.Cooperate with DI and support to formulate the design and construction scheme
|
|
