| Brand Name: | BVEM |
| Model Number: | BJV75E-377 |
| MOQ: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

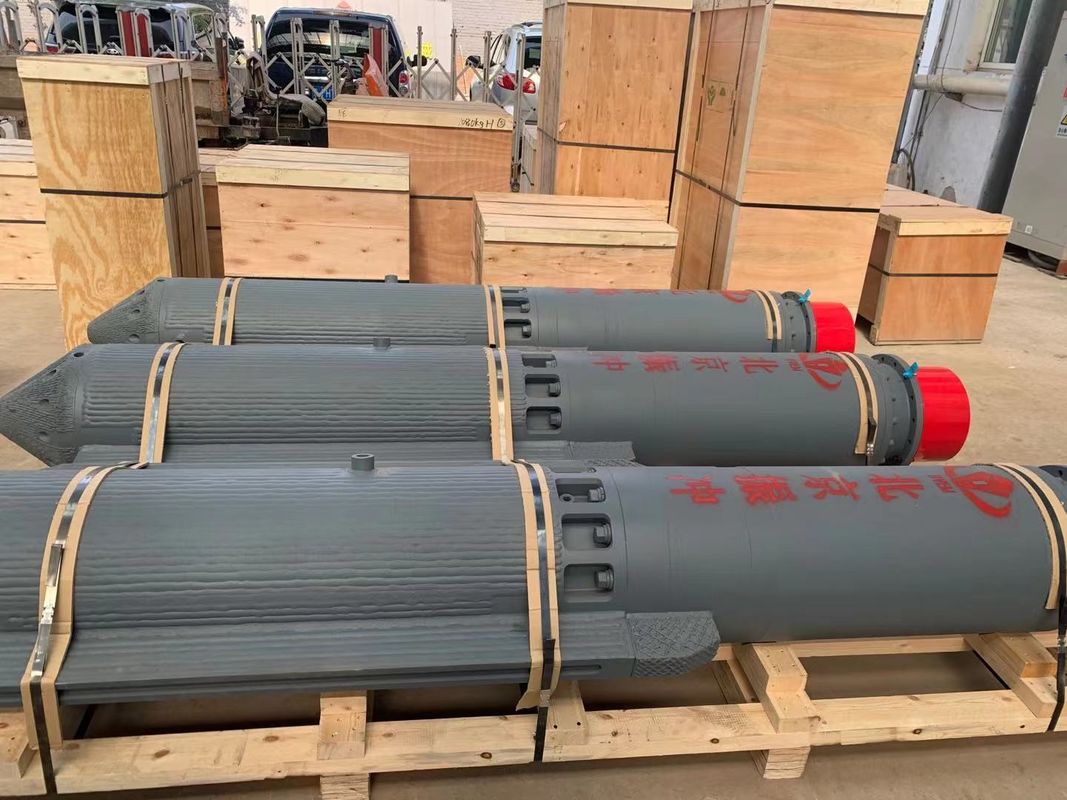

BVEM vibro compaction piling replacement pile 377mm 75kW vibroflotation device
| 75kW Vibroflot Spec. | |
| Type | BJV75E-377 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 17.5 |
| Centrifugal force/kN | 188 |
| Weight /kg | 1828 |
| Diameter/mm | 377 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (700-1200) |
Vibroflotation advantages
The vibroflotation process can offer the following benefits:
When the process is done properly, it will reduce the possibility of differential settlements that will improve the foundation condition of the proposed structure.
It is the fastest and easiest way to improve soil when bottom layers of soil will not provide good load bearing capacity.
It is a great technology to improve harbor bottoms
On a cost-related standpoint, it helps improve thousands of cubic meters per day. It is faster than piling.
It can be done around existing structures without damaging them.
It does not harm the environment
It improves the soil strata using its own characteristic
No excavations are needed, reducing the hazards, contamination of soils and hauling material out from the site
No need to manage table water issues, neither the permits required to manage water discharge and dewatering issues.
The technique of vibroflotation can be adapted to each scenario and site
When vibroflotation is performed at a site, it will reduce the possibility of liquefaction during an earthquake
BVEM/ Vibroflotation equipment manufacturer in China
Profession
BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
Scale
BVEM has a total 23000 square meters of coverage area, including NC machining workshop, electrical assembly workshop, storage warehouse, testing site, and full functional departments is composed of production, R&D, marketing , after-sales service and construction.
|
