| Brand Name: | BVEM |
| Model Number: | BJV130E-426 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Payment Terms: | L/C, T/T |

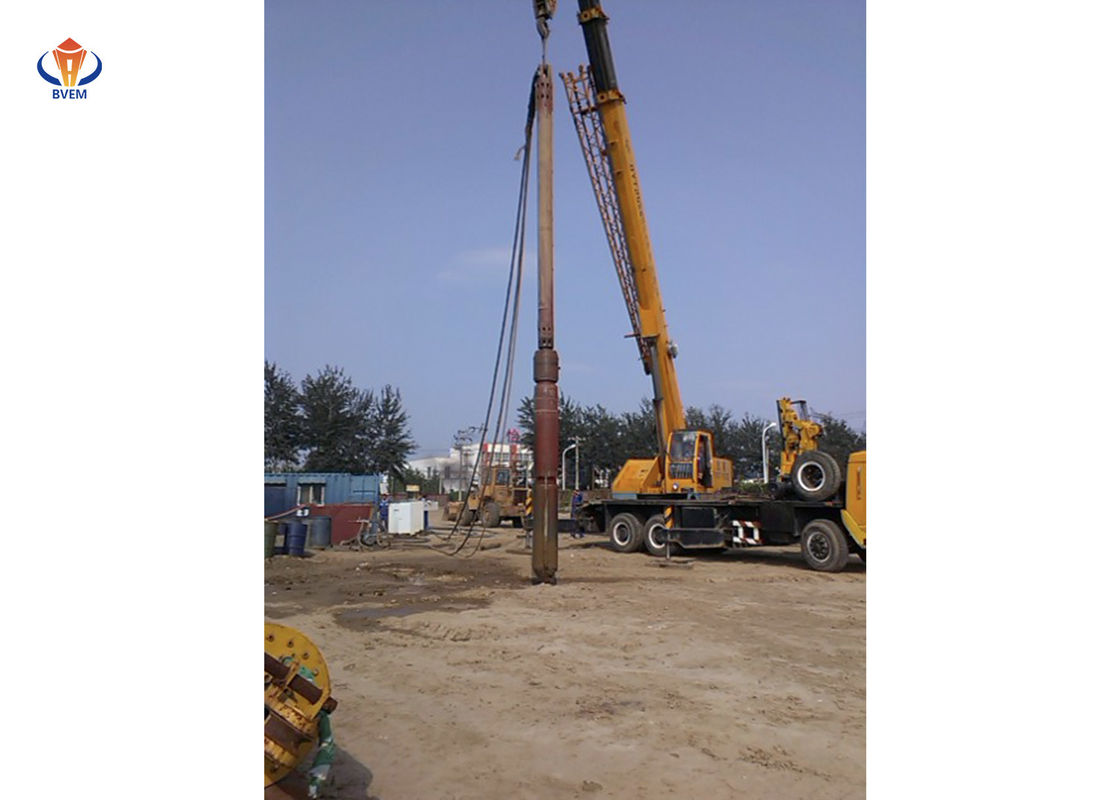

High efficiency electrical powerful vibrator used for vibro compaction piling construction 130KW
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV75E-426 | 75 | 148 | 1450 | 16 | 180 | 2018 | 426 | 2783 |
| BJV100E-426 | 100 | 195 | 1450 | 17.2 | 208 | 2073 | 426 | 2883 |
| BJV130E-426 | 130 | 255 | 1450 | 17.2 | 208 | 2320 | 426 | 2963 |
Vibro techniques
A foundation treatment method by joint action of horizontal vibration and high pressure water to compact the loose sand layer or formed in soft soil of stone column to compose the composite foundation with original soil together.
Vibroflotation benefits
The deep vibro techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions and foundation requirements. Its execution is comparatively fast even if large volumnes of soil are to be improved and subsequent structural works can follow very quickly.The soil improvement enables the contractor to utilise standard shallow footings which,in turn,leads to additional savings.
Another advantage is the environmental friendliness of vibro techniques,as natural and in situ materials are used. In addition, only a comparatively small quantity of soil is removed during the process.
Vibroflot supplier profile(BVEM)
BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
As the active pusher of vibroflotation and the professional supplier of vibroflot, BVEM has developed vibroflotation application and supplied vibroflot equipment to 33 countries all over the world.With the enterprise mission of "OUTPERFORM to SERVE VIBRIFLOTATION", BVEM product was widespread in more and more countries with excellent reputation which came from the high recognition of high performance product and the top level whole process service.
1.The first one who introduced and studied vibro compact method in China
2.The first one who developed application in Chinese projects
3.Has the top experts of vibroflotation tech. and experienced construction management team
4.China first one who reserched and produced vibrators
5.China first and only one who produced the Bottom Feed Vibroflot
6.The first one who produced domestic hydraulic-driven vibrator
7.All types&models coverage:30kw-260kw
8.Editor-in-cheif of industry standards <Technical Specification of Vibroflotation Method in Hydrauelectric and Water Resources Projects>(DL/T5214-2005)
9.Editor-in chelf of industry standrds <Electrical Deep Vibrator>(DL/T 1557-2016)
10.China first one who developed vibroflotation application in variety of industry(thermal power,hydraulic power, petrochemical, highway,rail, port etc.)
11.Cooperate with DI and support to formulate the design and construction scheme
|
|
