| Brand Name: | BVEM |
| Model Number: | BJV260E-450 |
| MOQ: | 1 |
| Price: | negotiation |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |

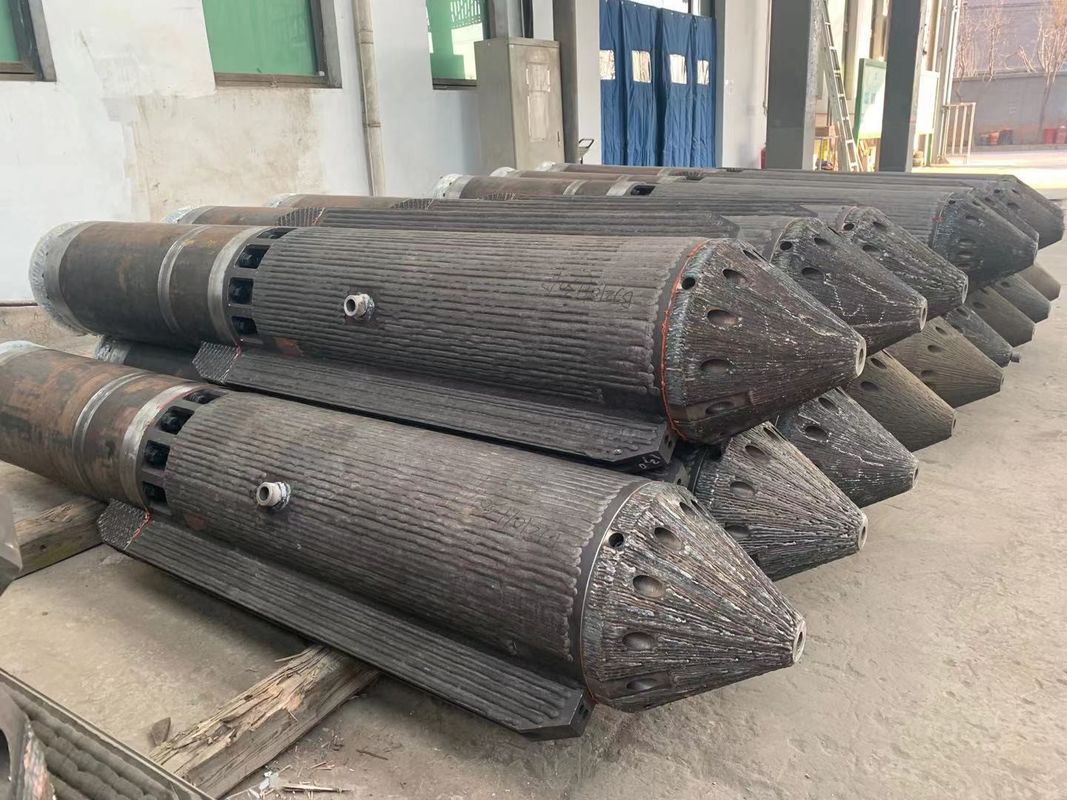

Largest top feed vibroflot equipment 260kw vibro sand compaction construction pile driving
| 260kW Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV260E-450 | 260 | 500 | 1450 | 25 | 520 | 3280 | 450 | 3400 |
BJV260E-450 vibr float
Mature electric vibroflot with maximum power in China
High performance imported bearing
Higher efficiency in vibro-compaction construction
Stronger penetrating capacity and bigger diameter of stone column creating ability
Vibroflotation
vibroflotation is one of a typical technique which is a widely used application for foundation soil improvement. In vibroflotation construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water or air shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity. Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.
BVEM Beijing vibroflotation engineering machinery limited company
As an professional company in vibroflotation industry, our company can provide users with full process services during the stages of pre-sales and after-sales as well, including vibroflotation design, construction scheme formulation, vibroflot and relevant equipment selection advice, installation and commissioning of the vibroflot, as well as the construction guidance and maintenance training.
|
|
