| Brand Name: | BVEM |
| Model Number: | BJV75E-426 |
| MOQ: | 1 |
| Price: | negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T |
426mm 75kW vibroflot equipment construction device for stone column making
| Vibroflot Spec. | |
| Type | BJV75E-426 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 16 |
| Centrifugal force/kN | 180 |
| Weight /kg | 2018 |
| Diameter/mm | 426 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (800-1200) |
Beijing vibroflotation engineer machinery co.,ltd(BVEM)
BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
As the active pusher of VIBRIFLOTATION and the professional supplier of vibroflot, BVEM has developed VIBRIFLOTATION application and supplied vibroflot equipment to 33 countries all over the world.With the enterprise mission of "OUTPERFORM to SERVE VIBRIFLOTATION", BVEM product was widespread in more and more countries with excellent reputation which came from the high recognition of high performance product and the top level whole process service.
Vibro compaction
Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.
Boring

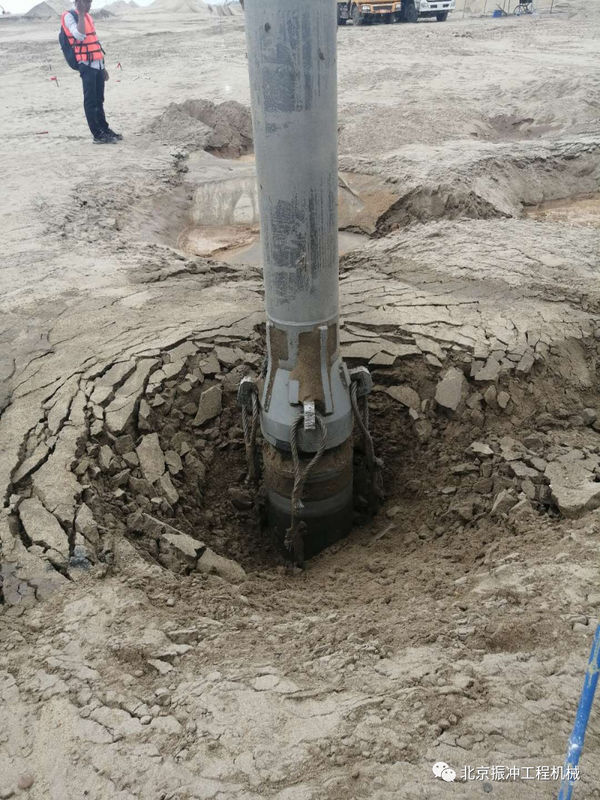

By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.

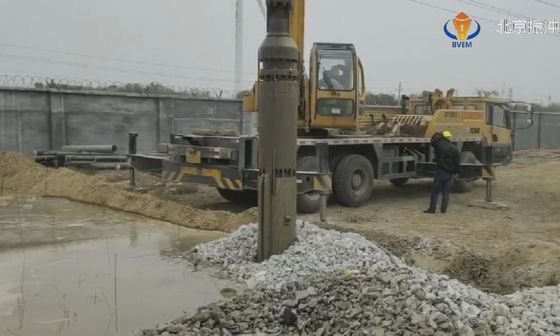

VIBROFLOTATION is one of a typical technique which is a widely used application for foundation soil improvement. In VIBROFLOTATION construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity.
|
|
