| Brand Name: | BVEM |
| Model Number: | BJV130E-377 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T, MoneyGram |
High effiency and effective vibroflot equipment used for vibro compaction engineering BJV130E-377
| Vibroflot Spec. | ||||
| Type | BJV130E-377 | BJV130E-426 | BJV150E-426 | BJV180E-426 |
| Power/kW | 130 | 130 | 150 | 180 |
| Rotation speed/rpm | 1450-1800 | 1450 | 1450 | 1450 |
| Amplitude (at Tip)/mm | 19 | 17.2 | 18.9 | 18.9 |
| Centrifugal force/kN | 180-276 | 208 | 276 | 276 |
| Weight /kg | 1900 | 2320 | 2516 | 2586 |
| Diameter/mm | 377 | 426 | 426 | 426 |
| Diameter of the work pile/mm | (800-1200) | (800-1200) | (800-1200) | (1000-1500) |

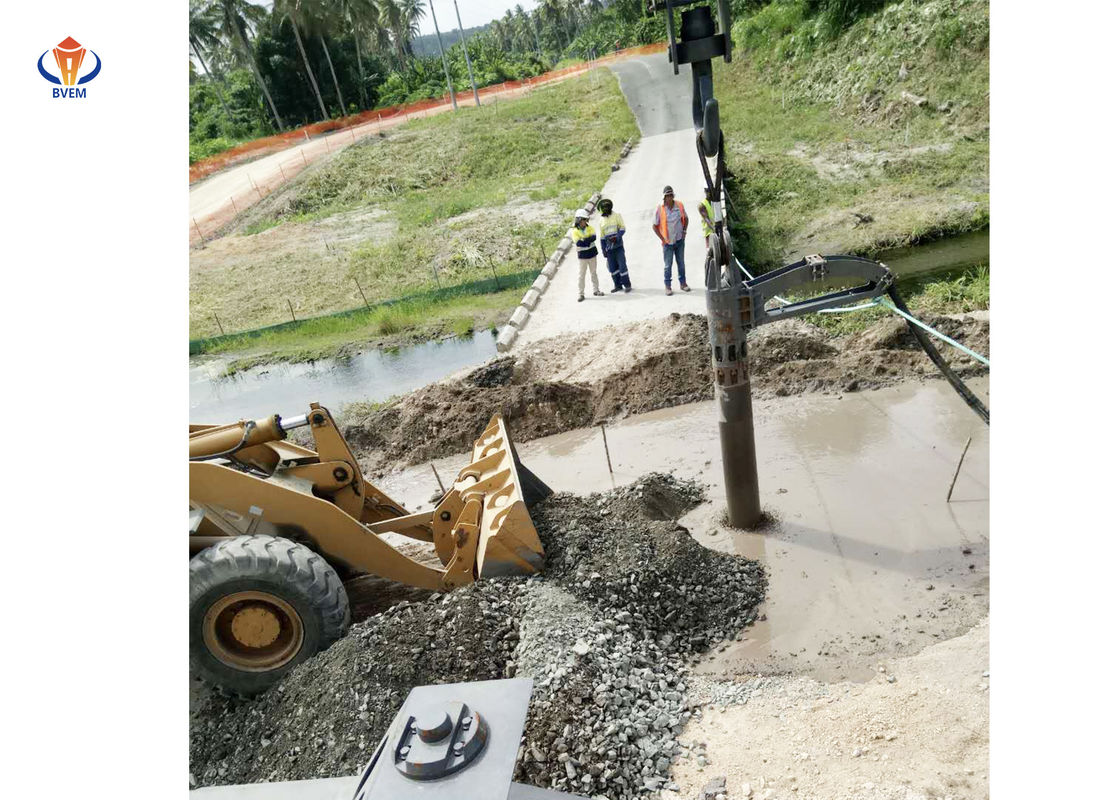

Vibro compaction
Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.
The profile of China vibroflot supplier
Beijing vibroflotation engineer machinery co.,ltd
With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
As an professional company in vibroflotation industry, our company can provide users with full process services during the stages of pre-sales and after-sales as well, including vibroflotation design, construction scheme formulation, vibroflot and relevant equipment selection advice, installation and commissioning of the vibroflot, as well as the construction guidance and maintenance training.
We look forward to being your golden business partners.
|
|
