| Brand Name: | BVEM |
| Model Number: | BJV180E-377 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T, MoneyGram |

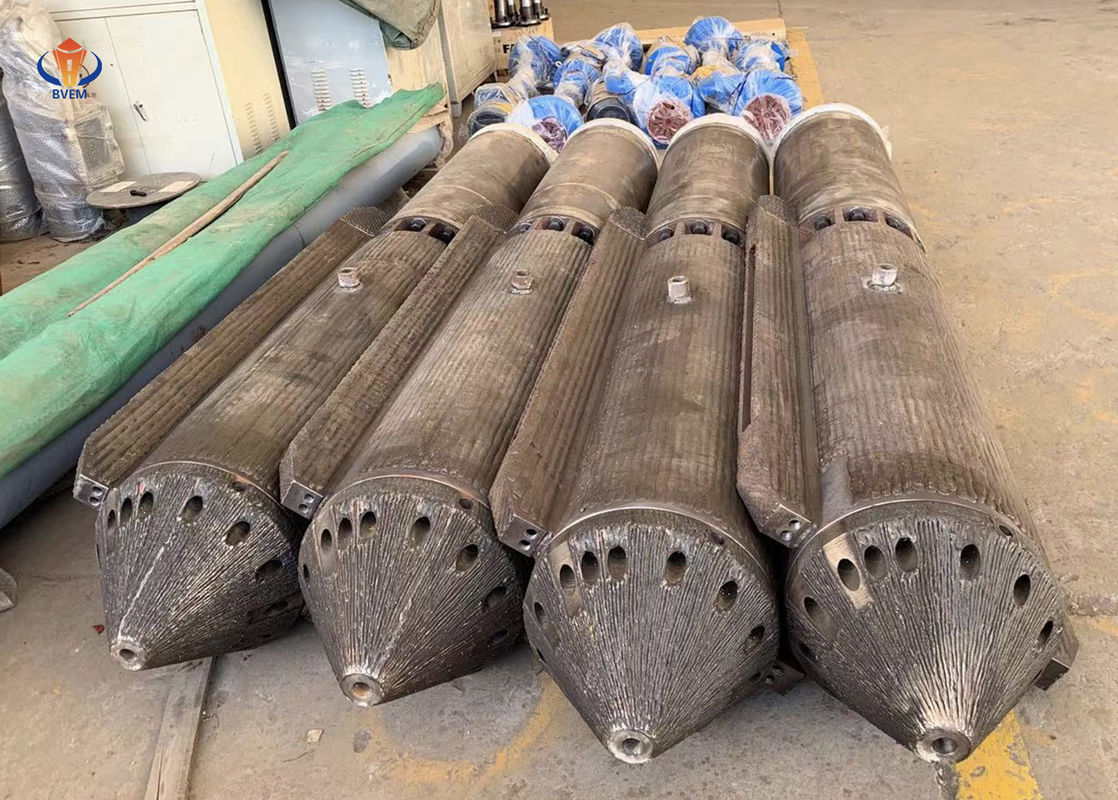

180 kW BVEM electric vibroflot equipment for vibroflotation improving foundation bearing capacity
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV75E-377 | 75 | 148 | 1450 | 17.5 | 188 | 1828 | 377 | 3110 |
| BJV130E-377 | 130 | 255 | 1450-1800 | 19 | 180-276 | 1900 | 377 | 3355 |
| BJV150E-377 | 150 | 290 | 1450-1800 | 19 | 180-276 | 2100 | 377 | 3445 |
| BJV180E-377 | 180 | 350 | 1450-1800 | 21 | 180-276 | 2140 | 377 | 3485 |
Vibroflotation is one of a typical technique which is a widely used application for foundation soil improvement.
Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.
Vbro-compaction techniques
Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.
|
|
