| Brand Name: | BVEM |
| Model Number: | BJV150E-377 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Payment Terms: | L/C, T/T, MoneyGram |

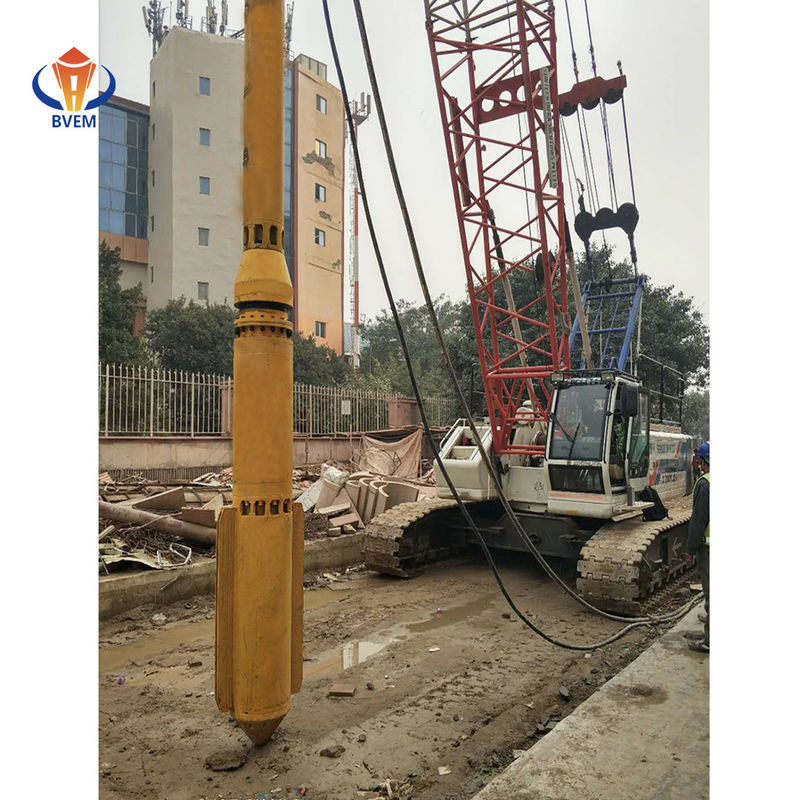

150 kW top feed vibroflot equipment for vibroflotation construction by vibro replacement
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV75E-377 | 75 | 148 | 1450 | 17.5 | 188 | 1828 | 377 | 3110 |
| BJV100E-377 | 100 | 195 | 1450-1800 | 19 | 180-276 | 1880 | 377 | 3215 |
| BJV130E-377 | 130 | 255 | 1450-1800 | 19 | 180-276 | 1900 | 377 | 3355 |
| BJV150E-377 | 150 | 290 | 1450-1800 | 19 | 180-276 | 2100 | 377 | 3445 |
| BJV180E-377 | 180 | 350 | 1450-1800 | 21 | 180-276 | 2140 | 377 | 3485 |
As a pile driving machine, vibroflot is a typical equipment with big population, high efficiency and better economy.
Vbro-replacement techniques
Jet water and vibrate by vibroflot to form holes. Fill in pile holes by section with solid filling materials such as gravel (cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up to the ground according to the requirements of compaction current and the sectional compaction length.
|
|
