Ground Improvement 100 KW Vibroflot Equipment 377 Mm Outer Diameter

Brand Name:	BVEM
Model Number:	BJV100E-377
MOQ:	1
Price:	Negotiable
Packaging Details:	wooden case
Payment Terms:	L/C, T/T, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Vibro Compaction Equipment

Power:

100 KW

Max Amplitude:

19 Mm

Vibration Power:

188 KN

Rated Current:

195 A

Outer Diameter:

377 Mm

Supply Ability:

600 sets per year

Highlight:

vibro piling equipment

vibroflot drive pile machine

Product Description

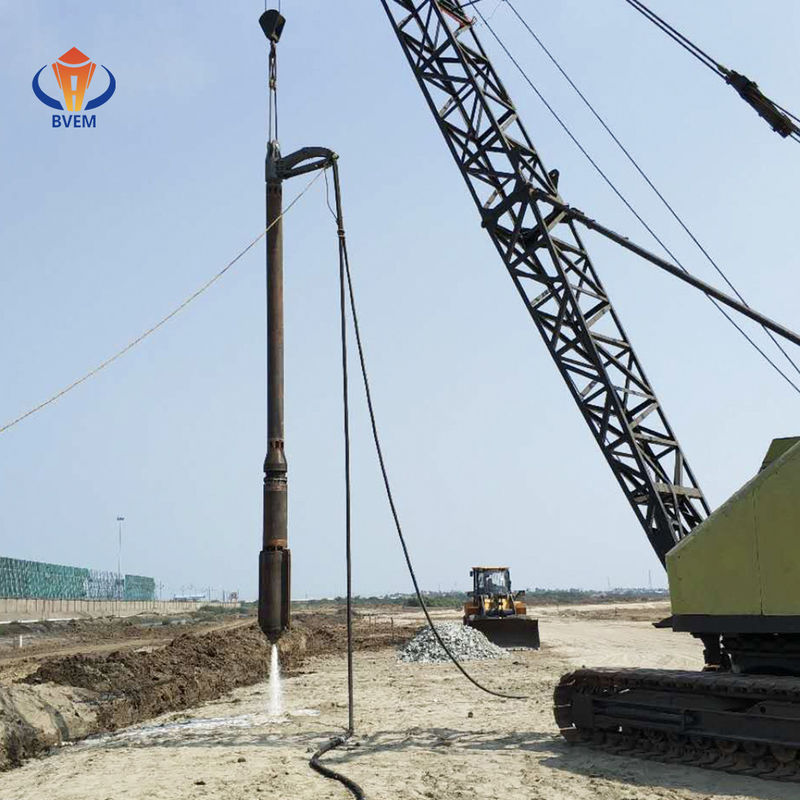

100 kW BVEM vibroflot equipment for vibroflotation construction by vibro compaction

The Top Feed Electric Vibroflot Spec.
Type	Power (kW)	Rated current(A)	Max rotation speed(rpm)	Max amplitude (mm)	Vibration power(kN)	Weight (kg)	Outer diameter(mm)	Length(mm)
BJV75E-377	75	148	1450	17.5	188	1828	377	3110
BJV100E-377	100	195	1450-1800	19	180-276	1880	377	3215
BJV130E-377	130	255	1450-1800	19	180-276	1900	377	3355
BJV150E-377	150	290	1450-1800	19	180-276	2100	377	3445
BJV180E-377	180	350	1450-1800	21	180-276	2140	377	3485

vibroflot overview

The vibroflot barrel and the motor housing are made of high strength forged steel
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect
Unique circulating water cooled motor structure, good heat dissipation with high efficiency
Both vibroflot and motor are imported with FAG original bearing
Double-deck vibrating head design with good resistance, easy to replace
Unique bearing oil lubrication, further improve bearing life

vibroflot characteristics

Gravel or backfill sand is filled from top of borehole
The most commonly used vibroflotation equipment
Used for vibro compaction and vibro replacement construction in general condition
Economy and efficient vibro construction method
